8002D System

* Preset 16 selectable UHF channels.
* Dual transmitter operation.
* Diversity technology prevents dropouts in the RF link.
* PLL synthesized technology.
* Noise mute and pilot tone squelch.
* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
* Tuned antennas maximize the effective range of the wireless link.
* Compact half rack space design.

Good for:
* Aerobics/Fitness
* School
* Cooperate presentation
* Stage performance
* Wireless for video (together with KA-10R)

FCC CE
8002D System

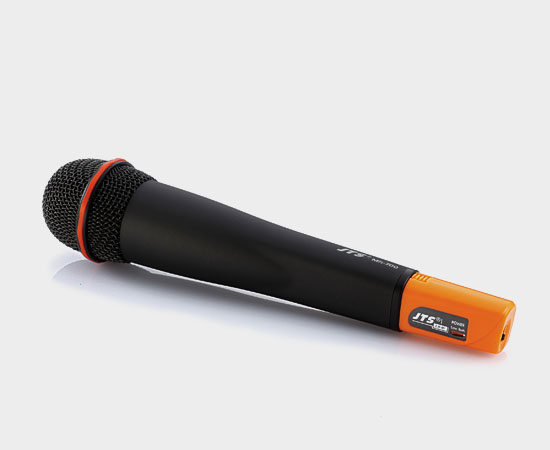

Mh-750

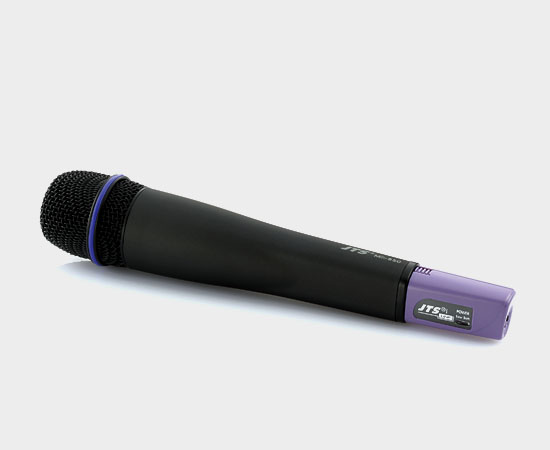

Mh-850

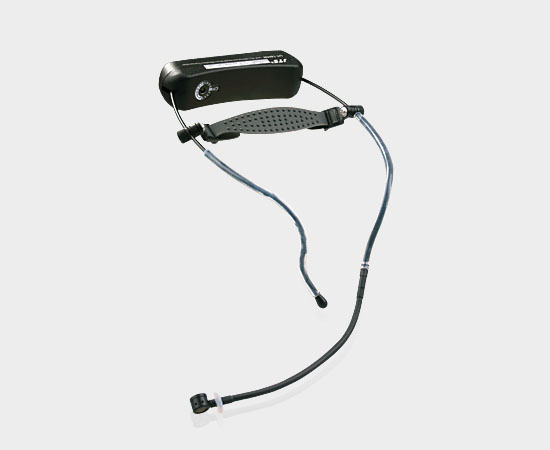

UT-16HWA
US-8002D
PT-850B/PT-850Bmi

PRODUCT SERIES

US-8002D

UHF PLL Dual Channel Diversity Receiver

UT-16HW

UHF PLL Miniature Headworn WIreless Transmitter

Mh-750/Mh-850

UHF PLL Handheld Transmitter

PT-850B

UHF PLL Body-Pack Transmitter

WHAT YOU GETIS SUITABLE FOR

CONFERENCE

CONFERENCE

VOCAL

VOCAL

PRESENTATION

PRESENTATION

SPECIFICATIONS

US-8002D
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LED
Display Contents Antenna A/B, RF/AF Status
Controls Power On/Off, Channel Selecting, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage US-8001D/US-8001DB : 12-18 VDC, 150mA
US-8002D/US-8002DB : 12-18 VDC, 200mA
Output Connector 1 Balanced XLR socket (2 for US-8002DB/US-8002D)
1 Unbalanced Ø6.3mm phone jack
Dimension(m/m) US-8001DB/US-8002DB : 210mm (W)* 40mm (H)* 181mm (D)
US-8001D/US-8002D : 210mm (W)* 40mm (H)* 171mm (D)
Mh-750 / Mh-850 (Option)
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Low Battery, Power On/Off
Controls Power On/Off, Channel Selecting
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
PT-850B/PT-850Bmi
Frequency Preparation PLL Synthesized Contro
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Power On/Off, Low battery
Controls Power On/Off, AF Level, Channel Selecting
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery UM3, AA 1.5V*2
UT-16HWV (Option)
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs Maximum 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Power On/Off, Low battery
Controls Power On/Off, AF Level, Channel Selecting, Mute
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery LR03, AAA 1.5V
