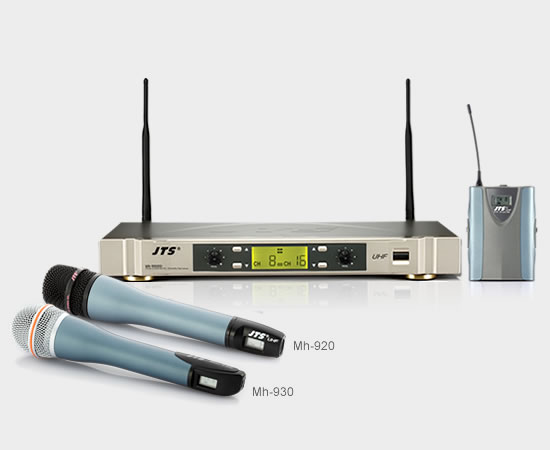

902D System

* 16 selectable, preset UHF channels.
* Diversity technology minimizes dropouts in the RF link.
* Noise mute and pilot tone squelch.
* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
* Metal housing fits this dual channel receiver into one rack space.

FCC CE
902D System
Mh-920
PT-920B/PT-920Bmi
US-902D

PRODUCT SERIES

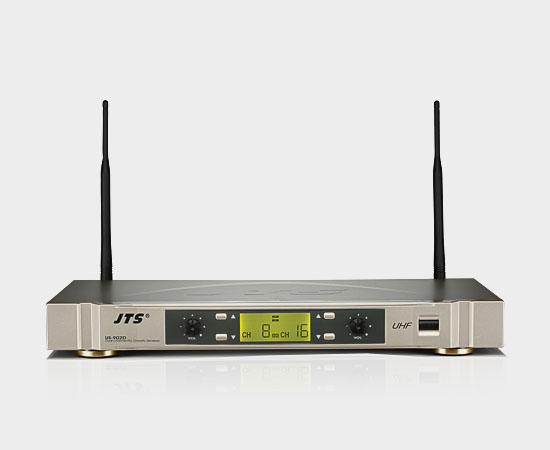

US-902D

UHF PLL Dual Channel Diversity Receiver

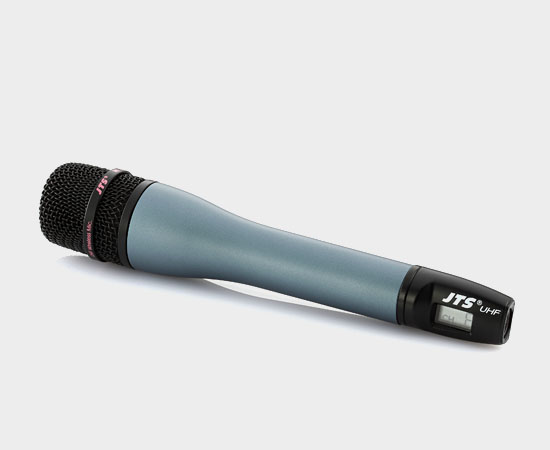

Mh-920

UHF PLL Handheld Transmitter

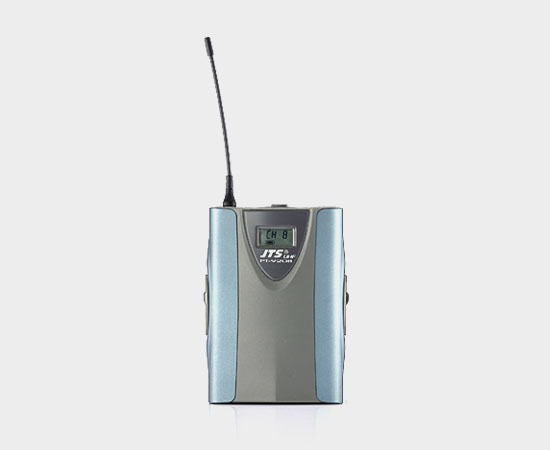

PT-920B

UHF PLL Body-Pack Transmitter

PT-920Bmi

UHF PLL Body-Pack Transmitter (for Musical Instrument)

WHAT YOU GETIS SUITABLE FOR

CONFERENCE

CONFERENCE

VOCAL

VOCAL

PRESENTATION

PRESENTATION

SPECIFICATIONS

US-902D
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency Range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Channel, Antenna A/B, RF/AF Level Meter
Controls Power On/Off, Channel Up/Down
Squelch Level, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage 12-18 VDC, 300mA
Output Connector 2 Balanced XLR Sockets
1 Unbalanced Ø6.3mm Phone jack
Dimension(m/m) 420mm (W)* 44mm (H)* 232mm (D)
Mh-920
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency Range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel
Controls Power On/Off, Channel Up/Down, Lock-on Mode
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
Mh-930 (Option)
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel
Controls Power On/Off, Channel Up/Down, Lock-on Mode
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
PT-920B/PT-920Bmi
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge
Controls Power On/Off, Channel Up/Down
Spurious Emissions <-60 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
