CX-512GZ

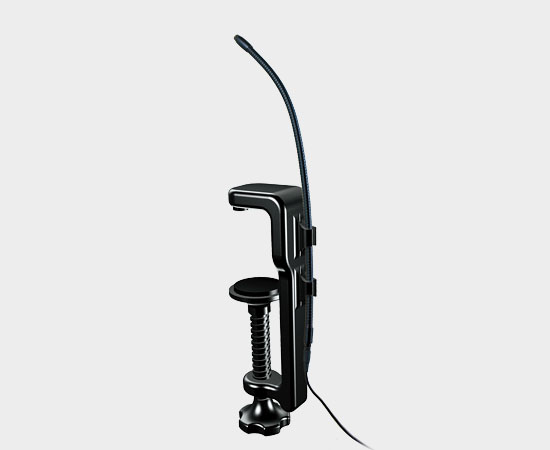

The CX-512GZ is designed to pick up the string, the harmonic and the vibration of the instrument. The innovative kit provides perfect solution to Chinese zither. This kit consists of one CX-500DU, one CX-500CI, one PS-510M and one MA-500

CX-512GZ

WHAT YOU GETIS SUITABLE FOR

INSTRUMENT

INSTRUMENT

SPECIFICATIONS

CX-512GZ
Type Omni-directional Condenser
Frequency Response 20~20,000 Hz
Sensitivity (at 1,000Hz) -58±3dB*(1.25mV)*0dB=1V/μbar
Impedance 1.5kΩ
Max.SPL for 1% T.H.D. 130 dB
Signal-To-Noise Ratio 68 dB
Output Connector 4P Mini XLR
Power Supply 1-5 VDC
Current Consumption ≤0.5mA
Weight 6.5 grams (including cable)
Dimensions(mm) Ø6mm(W)*13mm(H)
Standard Accessory MA-500
